Beskrivelse

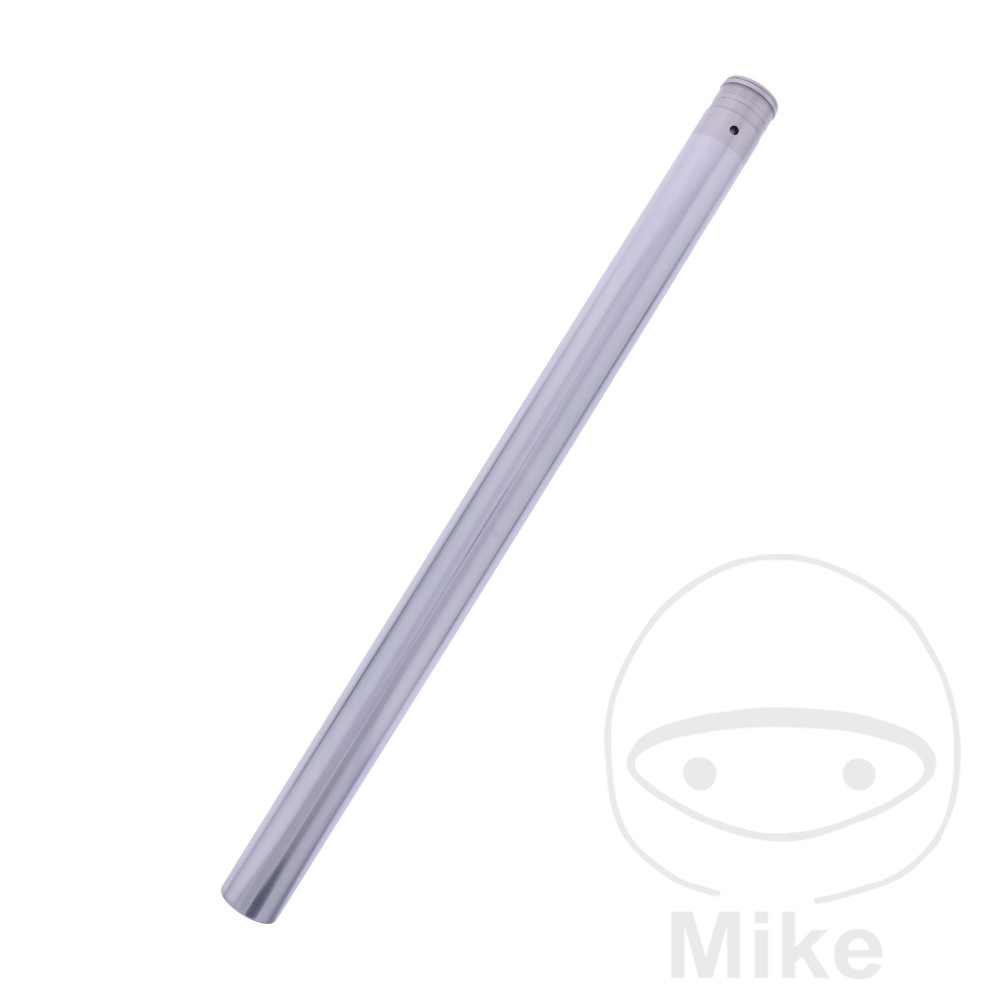

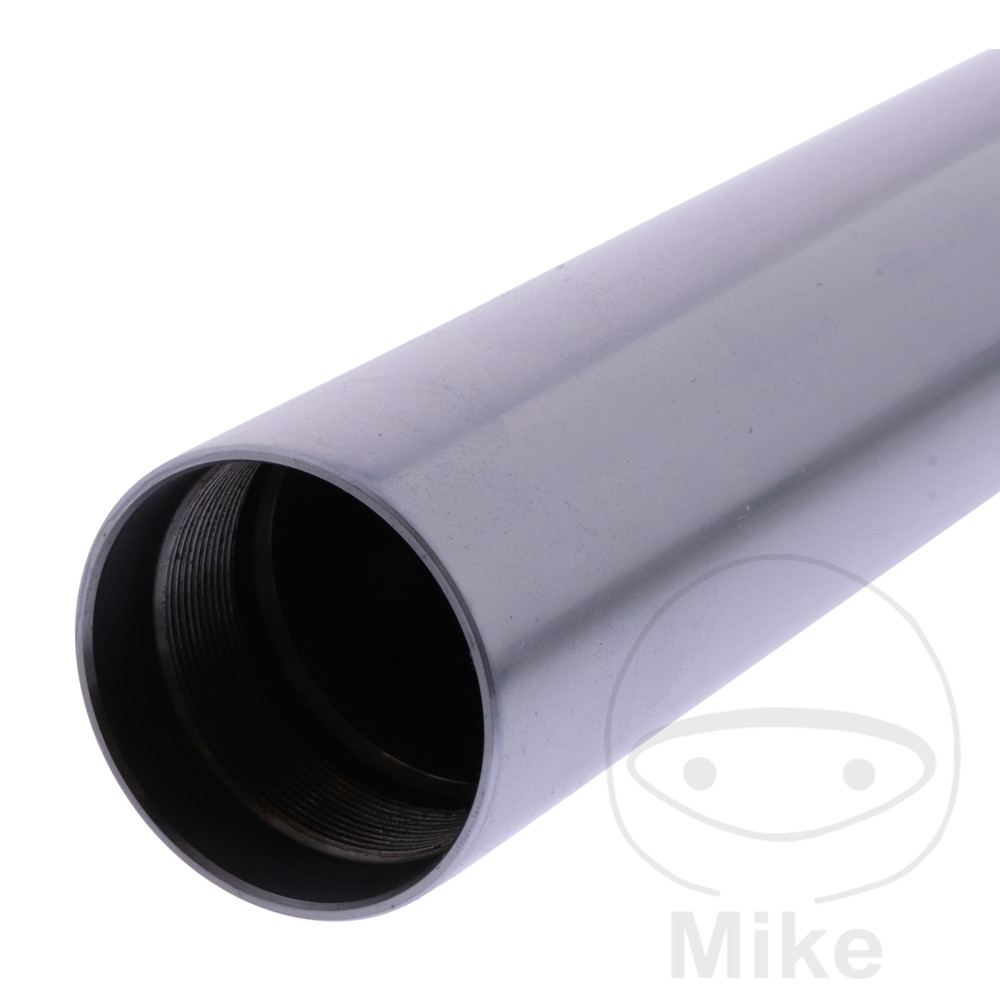

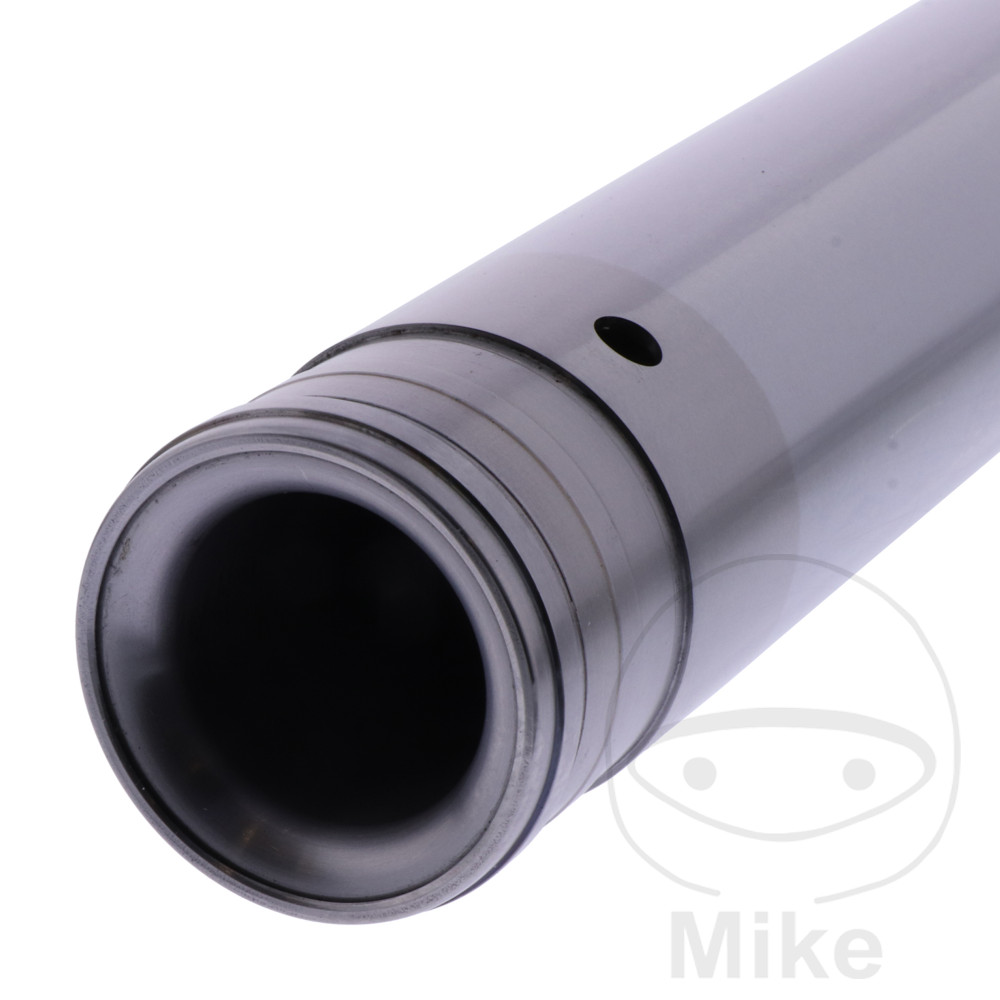

Gaffelstøtter fra JMP
– fremstillet af råmateriale af høj kvalitet
– speciel krombelægning med lavt løsrivningsmoment
– hvert enkelt standrør underkastes en kvalitetskontrol før levering
– fremstillet på de mest moderne CNC-maskiner i Centraleuropa
| Tekniske specifikationer | |
|---|---|
| Upside down | : Nej |
| Außendurchmesser | : 41 mm |
| Innendurchmesser | : 35.7 mm |
| Länge | : 612 mm |
| anschluss oben | : Gewinde |
| Anschluss unten | : Kein Gewinde |
| Gewinde | : 37 x 1.0 |
| Farve | : chrom |
Udskiftningsdelen passer til nedenstående modeller:Drej skærmen for at se alle oplysninger nedenfor
| Model | Årgangskode | Type | Fra – Til | Årgang | Cylinder | Ydelse | |
|---|---|---|---|---|---|---|---|
| Suzuki GSX 600 FU2 | K | GN72B | GN72B-101934 | GN72B-103195 | 1989 | 4 | 27 Hk, 20 kw |
| Suzuki GSX 600 FU | K | GN72B | GN72B-101934 | GN72B-103195 | 1989 | 4 | 50 Hk, 37 kw |
| Suzuki GSX 600 F | K | GN72B | GN72B-101934 | GN72B-103195 | 1989 | 4 | 86 Hk, 63 kw |
| Suzuki GSX 600 FU2 | L | GN72B | GN72B-103196 | GN72B-105125 | 1990 | 4 | 27 Hk, 20 kw |
| Suzuki GSX 600 FU | L | GN72B | GN72B-103196 | GN72B-105125 | 1990 | 4 | 50 Hk, 37 kw |
| Suzuki GSX 600 F | L | GN72B | GN72B-103196 | GN72B-105125 | 1990 | 4 | 86 Hk, 63 kw |
| Suzuki GSX 600 FU2 | M | GN72B | GN72B-105126 | GN72B-107851 | 1991 | 4 | 27 Hk, 20 kw |
| Suzuki GSX 600 FU | M | GN72B | GN72B-105126 | GN72B-107851 | 1991 | 4 | 50 Hk, 37 kw |
| Suzuki GSX 600 F | M | GN72B | GN72B-105126 | GN72B-107851 | 1991 | 4 | 86 Hk, 63 kw |
| Suzuki GSX 600 FU2 | N | GN72B | GN72B-107852 | GN72B-110172 | 1992 | 4 | 27 Hk, 20 kw |
| Suzuki GSX 600 FU | N | GN72B | GN72B-107852 | GN72B-110172 | 1992 | 4 | 50 Hk, 37 kw |
| Suzuki GSX 600 F | N | GN72B | GN72B-107852 | GN72B-110172 | 1992 | 4 | 86 Hk, 63 kw |
| Suzuki GSX 600 FU2 | P | GN72B | GN72B-110173 | GN72B-113173 | 1993 | 4 | 27 Hk, 20 kw |
| Suzuki GSX 600 FU | P | GN72B | GN72B-110173 | GN72B-113173 | 1993 | 4 | 50 Hk, 37 kw |
| Suzuki GSX 600 F | P | GN72B | GN72B-110173 | GN72B-113173 | 1993 | 4 | 86 Hk, 63 kw |
| Suzuki GSX 600 FU2 | R | GN72B | GN72B-113174 | GN72B-116152 | 1994 | 4 | 34 Hk, 25 kw |
| Suzuki GSX 600 FU | R | GN72B | GN72B-113174 | GN72B-116152 | 1994 | 4 | 50 Hk, 37 kw |
| Suzuki GSX 600 F | R | GN72B | GN72B-113174 | GN72B-116152 | 1994 | 4 | 86 Hk, 63 kw |
| Suzuki GSX 600 FU2 | S | GN72B | GN72B-116153 | GN72B-119118 | 1995 | 4 | 34 Hk, 25 kw |
| Suzuki GSX 600 FU | S | GN72B | GN72B-116153 | GN72B-119118 | 1995 | 4 | 50 Hk, 37 kw |
| Suzuki GSX 600 F | S | GN72B | GN72B-116153 | GN72B-119118 | 1995 | 4 | 86 Hk, 63 kw |
| Suzuki GSX 600 FU2 | T | GN72B | GN72B-119119 | GN72B-121124 | 1996 | 4 | 34 Hk, 25 kw |
| Suzuki GSX 600 FU | T | GN72B | GN72B-119119 | – | 1996 | 4 | 50 Hk, 37 kw |
| Suzuki GSX 600 F | T | GN72B | GN72B-119119 | GN72B-121124 | 1996 | 4 | 86 Hk, 63 kw |
| Suzuki GSX 600 FU2 | V | GN72B | GN72B-121125 | – | 1997 | 4 | 34 Hk, 25 kw |
| Suzuki GSX 600 FU | T | GN72B | GN72B-119119 | – | 1997 | 4 | 50 Hk, 37 kw |
| Suzuki GSX 600 F | V | GN72B | GN72B-121125 | – | 1997 | 4 | 86 Hk, 63 kw |
