Beskrivelse
DID er producent af originalt udstyr til mange japanske og europæiske mærker. Førende racerhold inden for road
landevejs- og offroadsport er afhængige af DID-teknologi.

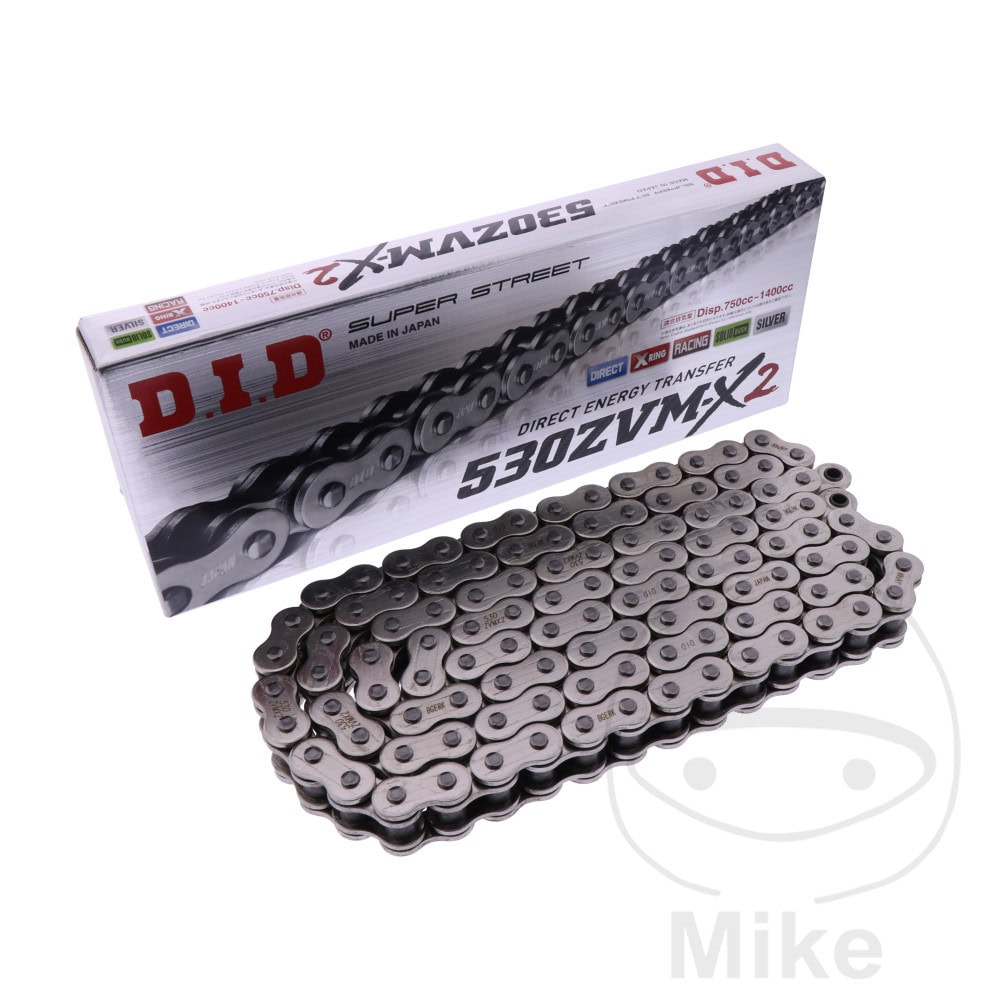

DID – Drivkæde ZVM-X2
Som efterfølger til den gennemprøvede ZVM-X højtydende kæde, blev der ved udviklingen af
ZVM-X2, blev der lagt særlig vægt på de forskellige belastninger, der forekommer i daglig brug.
Trækstyrken angiver kun brudbelastningen for en kæde, der er bestemt statisk i laboratoriet, men ikke dens modstandsdygtighed over for de kræfter, der opstår i praksis.
Af denne grund fokuserer ZVM-X2 primært på styrke i brug.
-forøget trækstyrke og
-meget høj slidstyrke og
reduceret friktionstab på op til 50 % takket være den patenterede X-ring-teknologi.
| Tekniske specifikationer | |
|---|---|
| Type | : 530 |
| Länge | : 122 Glieder |
| O-ring type | : X-Ring |
| Producent | : DID |
| Type | : ZVMX2 |
| Ausführung | : åben |
| Trækkraft (kg) | : 4720 kg |
| Farbe Außenlasche | : silber |
| Farbe Innenlasche | : silber |
| Index | : 4000 |
| Standardschloss | : Hohlnietschloss |
| Meterware | : 748 05 05 |
| passendes Masivnietschloss | : 748.05 17 |
| passendes Hohlnietschloss | : 748.05 18 |
Udskiftningsdelen passer til nedenstående modeller:Drej skærmen for at se alle oplysninger nedenfor
| Model | Årgangskode | Type | Fra – Til | Årgang | Cylinder | Ydelse | |
|---|---|---|---|---|---|---|---|
| Honda CB-X4 1300 DC | V | SC38 | SC38-1000001 | SC38-1099999 | 1997 | 4 | 98 Hk, 72 kw |
| Honda CB-X4 1300 DC | W | SC38 | SC38-1100001 | SC38-1199999 | 1998 | 4 | 98 Hk, 72 kw |
| Honda CB-X4 1300 DC | X | SC38 | SC38-1200001 | SC38-1209999 | 1999 | 4 | 98 Hk, 72 kw |
| Honda CB-X4 1300 DC | Y | SC38 | SC38-1210001 | SC38-1299999 | 2000 | 4 | 98 Hk, 72 kw |
| Honda CB-X4 1300 DC | Y | SC38 | SC38-1210001 | SC38-1299999 | 2001 | 4 | 98 Hk, 72 kw |
| Honda CB-X4 1300 DC | Y | SC38 | SC38-1210001 | SC38-1299999 | 2002 | 4 | 98 Hk, 72 kw |
| Suzuki GSX 1100 F | K | GV72C | GV72C-102648 | GV72C-104408 | 1989 | 4 | 100 Hk, 74 kw |
| Suzuki GSX 1100 F | L | GV72C | GV72C-104409 | GV72C-105273 | 1990 | 4 | 100 Hk, 74 kw |
| Suzuki GSX 1100 F | M | GV72C | GV72C-105273 | GV72C-106115 | 1991 | 4 | 100 Hk, 74 kw |
| Suzuki GSX 1100 F | N | GV72C | GV72C-106116 | GV72C-108890 | 1992 | 4 | 100 Hk, 74 kw |
| Suzuki GSX 1100 F | N | GV72C | GV72C-106116 | GV72C-108890 | 1993 | 4 | 100 Hk, 74 kw |
| Suzuki GSX 1100 F | R | GV72C | GV72C-108891 | – | 1994 | 4 | 98 Hk, 72 kw |
| Suzuki GSX 1100 F | R | GV72C | GV72C-108891 | – | 1995 | 4 | 98 Hk, 72 kw |
| Suzuki GSX 1100 F | R | GV72C | GV72C-108891 | – | 1996 | 4 | 98 Hk, 72 kw |
| Yamaha FZ1 1000 N | 2D11 | RN165 | RN165-000301 | – | 2006 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 2D14 | RN165 | RN165-005705 | – | 2007 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 2D17 | RN165 | RN165-005786 | – | 2007 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 2D1E | RN165 | RN165-012510 | – | 2008 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 2D1B | RN165 | RN165-012454 | – | 2008 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 2D1J | RN165 | RN165-014792 | – | 2009 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 2D1M | RN165 | RN165-014852 | – | 2009 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 2D1R | RN165 | RN165-015861 | – | 2010 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 2D1U | RN165 | RN165-015895 | – | 2010 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 2D12 | RN166 | RN166-000301 | – | 2006 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 1EC1 | RN16H | RN16H-000301 | – | 2011 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 1EC4 | RN16H | RN16H-000855 | – | 2012 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 1EC4 | RN16H | RN16H-000855 | – | 2013 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 1EC4 | RN16H | RN16H-000855 | – | 2014 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 N | 1EC4 | RN16H | RN16H-000855 | – | 2015 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22C1 | RN16A | RN16A-000732 | – | 2008 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22C3 | RN16A | RN16A-000798 | – | 2008 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22C5 | RN16A | RN16A-002172 | – | 2009 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22C7 | RN16A | RN16A-002205 | – | 2009 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22C9 | RN16A | RN16A-003232 | – | 2010 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22CB | RN16A | RN16A-003381 | – | 2010 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22CD | RN16R | RN16R-000301 | – | 2011 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22CF | RN16R | RN16R-000676 | – | 2012 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22CF | RN16R | RN16R-000676 | – | 2013 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22CF | RN16R | RN16R-000676 | – | 2014 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 NA ABS | 22CF | RN16R | RN16R-000676 | – | 2015 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 3C31 | RN161 | RN161-000381 | – | 2006 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 3C37 | RN161 | RN161-000301 | – | 2006 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 3C3A | RN161 | RN161-005655 | – | 2007 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S GT Fazer | 3C3A | RN161 | RN161-005655 | – | 2007 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 3C3H | RN161 | RN161-009498 | – | 2008 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 3C3P | RN161 | RN161-012295 | – | 2009 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 1CA5 | RN161 | RN161-013389 | – | 2010 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 3C3X | RN161 | RN161-013257 | – | 2010 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 1CA9 | RN16D | RN16D-000301 | – | 2011 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 1CAF | RN16D | RN16D-000348 | – | 2011 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 1CAK | RN16D | RN16D-000519 | – | 2012 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 1CAK | RN16D | RN16D-000519 | – | 2013 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 1CAK | RN16D | RN16D-000519 | – | 2014 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 S Fazer | 1CAK | RN16D | RN16D-000519 | – | 2015 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D01 | RN168 | RN168-000719 | – | 2007 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA GT Fazer ABS | 5D01 | RN168 | RN168-000719 | – | 2007 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D03 | RN168 | RN168-003455 | – | 2008 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D05 | RN168 | RN168-005914 | – | 2009 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D07 | RN168 | RN168-006852 | – | 2010 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D09 | RN168 | RN168-006832 | – | 2010 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D0B | RN16M | RN16M-000301 | – | 2011 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D0D | RN16M | RN16M-000341 | – | 2011 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D0F | RN16M | RN16M-001018 | – | 2012 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D0F | RN16M | RN16M-001018 | – | 2013 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D0F | RN16M | RN16M-001018 | – | 2014 | 4 | 150 Hk, 110 kw |
| Yamaha FZ1 1000 SA Fazer ABS | 5D0F | RN16M | RN16M-001018 | – | 2015 | 4 | 150 Hk, 110 kw |
| ZZZ Z | – | – | – | ||||
